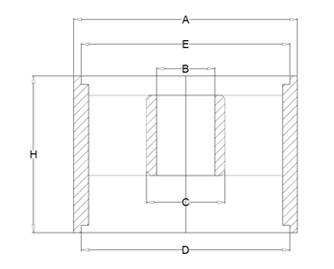

NO | PRODUCT NAME | ITEM | OD | BORE | ASS. | HEIGHT | PLATE |
NO | (Ø) | ID (Ø) | ID (Ø) | (mm) | ID (Ø) | ||
A | B | E/D | H | ||||
1 | K-4 DOL | 11380000 | 81 | 26.5+KEY WAY | 74.6 | 37.3 | |
2 | R 1/2/3 DOL | DL 10620000 | 86 | 28 | 81.1 | 35 | |
3 | R 5/7 DOL | DL 10630000 | 86 | 28 | 81.1 | 35 | |
4 | R 1/2/3 MIDDLE WITH PLATE | M 10620100 | 86 | 28 | 81.1 | 35 | 33.2 |
5 | R 5/7 MIDDLE WITH PLATE | M 10630100 | 86 | 28 | 81.1 | 35 | 44.5 |

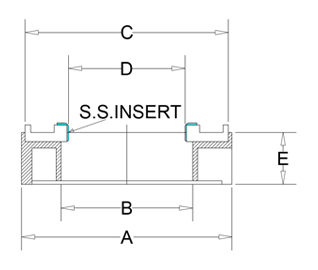

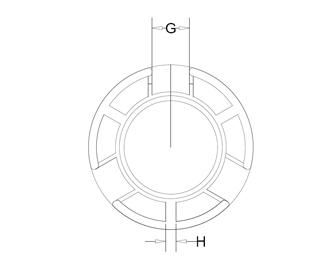

NO | PRODUCT NAME | ITEM | OD | ID | ASS. | PLATE | HEIGHT | SLOT |
NO | (Ø) | (Ø) | OD (Ø) | ID (Ø) | (mm) | |||
A | B | C | D | E | G | |||
1 | R 1/2/3 SUCTION PLATE | S 10600000 | Ø86 | Ø56 | Ø81.1 | Ø33.2 | 20 | 15.5X10 |
2 | R 5/7 SUCTION PLATE | S 10610000 | Ø86 | Ø56 | Ø81.1 | Ø44.5 | 20 | 15.5X10 |
3 | K-4 SUCTION PLATE | S 10580000 | Ø81 | Ø56 | Ø77.7 | Ø33.3 | 15.5 | 14X12 |
4 | K-7 SUCTION PLATE | S 10590000 | Ø81 | Ø56 | Ø77.50 | Ø44.7 | 15.5 | 14X12 |
5 | KG-4 SUCTION PLATE WITH S.S | S 10640000 | Ø81 | Ø56 | Ø77.7 | Ø34 | 16.7 | 14X11 |
6 | KG-7 SUCTION PLATE WITH S.S | S 10650000 | Ø81 | Ø56 | Ø77.7 | Ø44.5 | 16.7 | 14X11 |
7 | K-18 IP PLATE | S 11610000 | Ø86 | Ø56 | Ø82 | Ø61.5 | 29 | 15.5X11.5 |
8 | V3-SUCTION PLATE | S 11690000 | Ø64 | Ø40 | Ø61.8 | Ø36.3 | 15.5 | 14.5X10 |
NO | PRODUCT NAME | ITEM | OD 1 | OD 2 | OD 3 | TOTAL | RIB | RIB | TOP RIB | BOTTOM |
NO | (Ø) | (Ø) | (Ø) | LENGTH (mm) | WIDTH (mm) | LENGTH (mm) | OD (Ø) | ID (Ø) | ||
1 | VENTURY | 11170000 M | 30 | 25.3 | 22.5 | 111.5 | 10 | 12.5 | 24.5 | 19.5 |
2 | VENTURY | 11170000 | 30 | 25.3 | 22.5 | 111.5 | 10 | 12.5 | 25.2 | 19.5 |
NO | PRODUCT NAME | ITEM | LENGTH | WIDTH | HEIGHT | BOSS | BOSS | BOSS |
NO | (mm) | (mm) | (mm) | OD (Ø) | DEPTH | ID (Ø) | ||
1 | NOZZLE | 11180000 | 65 | 43 | 19.8 | 32 | 4 | 7.3 |
NO | PRODUCT NAME | ITEM | LENGTH | OD | ID | KEY SLOT |
NO | (mm) | (Ø) | (Ø) | |||
1 | BUSH | 11190000 | 17 | 40 | 33 | 4.5X5 |
NO | PRODUCT NAME | ITEM | OD | ASS. | ID | HEIGHT |
NO | (Ø) | OD (Ø) | (Ø) | (mm) | ||
1 | VALVE SEAT | 11160000 | 84.4 | 78 | 43.80 | 20.5 |
NO | PRODUCT NAME | ITEM | LENGTH | OD | HEIGHT | DIA | DEPTH |
NO | (mm) | (Ø) | (mm) | (Ø) | |||
1 | N.R.V. | 11200000 | 56.6 | 56.6 | 8 | 7 | 50 |
2 | N.R.V. WITH HOLE | 11420000 | 56.6 | 56.6 | 8 | 7 | 50 |
NO | PRODUCT NAME | ITEM | ID | OD | HEIGHT | DIA | DEPTH |
NO | (Ø) | (Ø) | (mm) | (Ø) | |||
1 | K-18 C-PLASTIC RING (BOWL) | 11430000 | 82 | 86 | 49 | 82 | 43 |
NO | PRODUCT NAME | ITEM | OD | HEIGHT | OD | HEIGHT | DEPTH | HEIGHT | ID | TOTAL |
NO | (Ø) | (mm) | (Ø) | (mm) | (Ø) | (mm) | S.S.RING (Ø) | HEIGHT (mm) | ||
1 | K18 A -NECK RING | 11440000 | 86 | 3.05 | 82 | 3 | 81.1 | 2.5 | 61.5 | 12.9 |
