| NO |
KORA SERIES DIFFUSER |
ITEM |
VANE |
OD |
ASS. ID |
DIFFUSER |
PLATE |
SEATING |
|
|
NO |
NO |
(Ø) |
(Ø) |
ID (Ø) |
ID (Ø) |
HEIGHT (mm) |
|

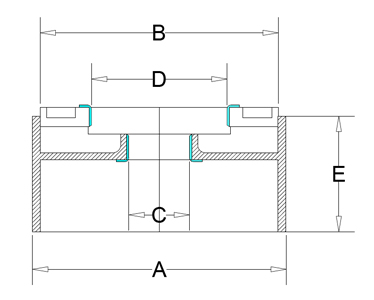

Ø3''PUMP |
|
|
A |
B |
C |
D |
E |
| 1 | K-1 (N) DIFFUSER W/O S.S.INSERT | 10030000 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 22.6 |
| 2 | K-2 (N) DIFFUSER W/O S.S.INSERT | 10030000 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 22.6 |
| 3 | K-4 (N) DIFFUSER W/O S.S.INSERT | 10080000 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 25.5 |
| 4 | K-5 (N) DIFFUSER W/O S.S.INSERT | 10150000 | 6 | 81.5 | 77.5 | 19.5 | 44.5 | 34 |
| 5 | K-7 (N) DIFFUSER W/O S.S.INSERT | 10150000 | 6 | 81.5 | 77.5 | 19.5 | 44.5 | 34 |
| 6 | KG-1 (N) DIFFUSER WITH S.S.INSERT | 10030100 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 22.6 |
| 7 | KG-2 (N) DIFFUSER WITH S.S.INSERT | 10030100 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 22.6 |
| 8 | KG-4 (N) DIFFUSER WITH S.S.INSERT | 10080100 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 25.5 |
| 9 | KG-5 (N) DIFFUSER WITH S.S.INSERT | 10150100 | 6 | 81.5 | 77.5 | 19.5 | 44.5 | 34 |
| 10 | KG-7 (N) DIFFUSER WITH S.S.INSERT | 10150100 | 6 | 81.5 | 77.5 | 19.5 | 44.5 | 34 |
| 11 | K-1 (BLACK) DIFFUSER W/O S.S.INSERT | 10030001 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 22.6 |
| 12 | K-2 (BLACK) DIFFUSER W/O S.S.INSERT | 10030001 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 22.6 |
| 13 | K-4 (BLACK) DIFFUSER W/O S.S.INSERT | 10080001 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 25.5 |
| 14 | K-7 (BLACK) DIFFUSER W/O S.S.INSERT | 10150001 | 6 | 81.5 | 77.5 | 19.5 | 44.5 | 34 |
| 15 | KG-1 (BLACK) DIFFUSER WITH S.S.INSERT | 10030101 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 22.6 |
| 16 | KG-2 (BLACK) DIFFUSER WITH S.S.INSERT | 10030101 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 22.6 |
| 17 | KG-4 (BLACK) DIFFUSER WITH S.S.INSERT | 10080101 | 6 | 81.5 | 77.5 | 19.5 | 33.2 | 25.5 |
| 18 | KG-7 (BLACK) DIFFUSER WITH S.S.INSERT | 10150101 | 6 | 81.5 | 77.5 | 19.5 | 44.5 | 34 |
| 19 | K-4 (N) TOP DIFFUSER | 10200000 | 6 | 81.5 | 77.5 | 28+KEY | X | 34 |
| 20 | K-10 DIFFUSER | 11230000 | 6 | 81.5 | 78.5 | 19.5 | 50.4 | 43 |
| | | | | | WAY | | |
