3" Series - Diffuser
3" Series - Diffuser
3" Series - Diffuser

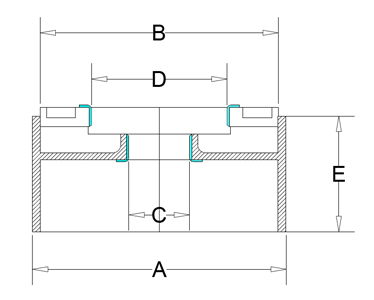

| NO |
DIFFUSER |
ITEM NO |
NO OF VANE |
OD |
ASS. ID |
DIFFUSER ID |
PLATE ID |
SEATING HEIGHT |
|
|
NO |
|
(Ø) |
(Ø) |
(Ø) |
(Ø) |
(mm) |
| 1 | 3RF 04 DIFFUSER | 10440000 | 5 | 65.5 | 61.6 | 17.3 | 35 | 26.5 |
| 2 | 3RF 05 DIFFUSER | 10470000 | 5 | 65.5 | 61.6 | 17.3 | 35 | 31 |
| 3 | 3RF 07 DIFFUSER | 10500000 | 5 | 65.5 | 61.6 | 17.3 | 36.5 | 38 |
| 4 | RT-6 DIFFUSER | 11110000 | 6 | 64 | 61 | 19.5 | 37.5 | 27.7 |
| 5 | V3-7 DIFFUSER | 10640000 | 5 | 64.5 | 61.6 | 17 | 35 | 30 |
| 6 | V3-10 DIFFUSER | 10680000 | 5 | 64.5 | 61.6 | 17 | 35 | 38 |
| NO |
DIFFUSER |
ITEM NO |
NO OF VANE |
OD |
ASS. ID |
DIFFUSER ID |
ASS. OD |
TOTAL HEIGHT |
|
|
|
|
Ø |
Ø |
Ø |
Ø |
(mm) |
| 1 |
03 DIFFUSER |
10540000 |
7 |
84 |
78 |
18 |
81.3 |
13.3 |
| 2 |
07 DIFFUSER |
10570000 |
7 |
84 |
78 |
18 |
81.3 |
14.3 |
