6" Series - Impeller
6" Series - Impeller
6" Series - Impeller

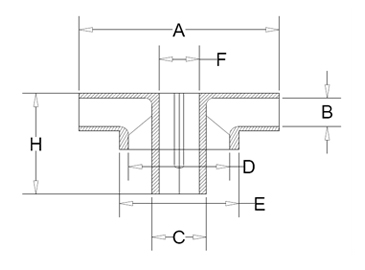

| NO |
PRODUCT NAME |
ITEM |
VANE |
VANE |
OD |
BORE |
SUCTION |
SUCTION |
HUB |
LENGTH |
|
|
NO |
NO |
GAP (mm) |
(Ø) |
ID (Ø) |
OD (Ø) |
ID (Ø) |
DIA (Ø) |
(mm) |
| 1 | K152 IMPELLER 1 | 10980000 | 7 | 10.5 | 85 | 20 H7 + KEY | 49.50 | 45 | 25.8 | 44.5 |
| 2 | K152 IMPELLER 2 | 11450000 | 7 | 10.5 | 85 | 18 H7 + KEY | 49.80 | 45 | 24.6 | 44 |
| 3 | K212 IMPELLER 1 | 11020000 | 8 | 9 | 97 | 20 H7 + KEY | 59.65 | 50.75 | 27.5 | 50 |
| 4 | K212 IMPELLER 2 | 11460000 | 8 | 9 | 97 | 20 H7 + KEY | 59.65 | 50.75 | 27.5 | 54 |
| 5 | K212 IMPELLER 3 | 11030000 | 8 | 11 | 97 | 20 H7 + KEY | 59.65 | 50.75 | 27.5 | 50 |
| 6 | K212 IMPELLER 4 | 11040000 | 8 | 13 | 97 | 20 H7 + KEY | 59.65 | 52 | 27.5 | 54 |
| 7 | 100 HH IMPELLER | 11060000 | 8 | 7.5 | 120 | 20 H7 + KEYWAY | 63 | 50 | 30 | 37.6 |
| 8 | 80 HNN IMPELLER | 11500000 | 8 | 7.5 | 120 | 20 H7 + KEYWAY | 63 | 50 | 30 | 37.6 |
| 9 | 60 HNN IMPELLER | 11510000 | 8 | 3.5 | 110 | 20 H7 + KEYWAY | 63 | 50 | 30 | 37.6 |
