Accessories - Suction

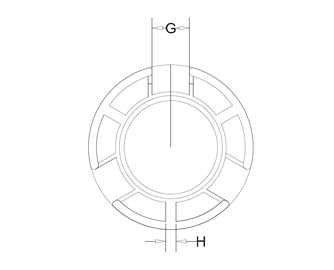

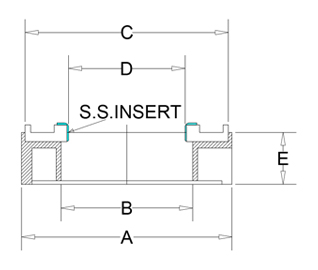

| NO | PRODUCT NAME | ITEM | OD | ID | ASS | PLATE | HEIGHT | SLOT |
|---|---|---|---|---|---|---|---|---|
| NO | (Ø) | (Ø) | (Ø) | (Ø) | (mm) | |||
| A | B | C | D | E | G | |||
| 1 | R 1/2/3 SUCTION PLATE | S 10600000 | Ø86 | Ø56 | Ø81.1 | Ø33.2 | 20 | 15.5X10 |
| 2 | R 5/7 SUCTION PLATE | S 10610000 | Ø86 | Ø56 | Ø81.1 | Ø44.5 | 20 | 15.5X10 |
| 3 | K-4 SUCTION PLATE | S 10580000 | Ø81 | Ø56 | Ø77.7 | Ø33.3 | 15.5 | 14X12 |
| 4 | K-7 SUCTION PLATE | S 10590000 | Ø81 | Ø56 | Ø77.50 | Ø44.7 | 15.5 | 14X12 |
| 5 | KG-4 SUCTION PLATE WITH S.S | S 10640000 | Ø81 | Ø56 | Ø77.7 | Ø34 | 16.7 | 14X11 |
| 6 | KG-7 SUCTION PLATE WITH S.S | S 10650000 | Ø81 | Ø56 | Ø77.7 | Ø44.5 | 16.7 | 14X11 |
| 7 | K-18 IP PLATE | S 11610000 | Ø86 | Ø56 | Ø82 | Ø61.5 | 29 | 15.5X11.5 |
| 8 | V3 SUCTION PLATE | S 11690000 | Ø64 | Ø40 | Ø61.8 | Ø36.3 | 15.5 | 14.5X10 |
