NO |
NO |
(Ø) |
(Ø) |
ID (Ø |
ID (Ø |
HEIGHT (mm) |
|
Ø4''PUMP |
|
|

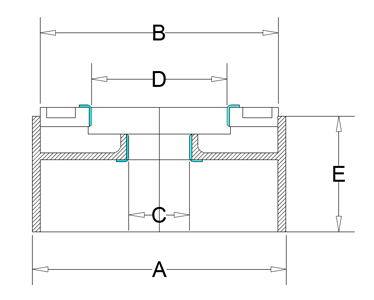

A |
B |
C |
D |
E |
| 1 | R-1 (N) DIFFUSER WITH S.S. INSERT | 10290000 | 5 | 86 | 81.1 | 19.5 | 33.2 | 25.5 |
| 2 | R-2 (N) DIFFUSER WITH S.S. INSERT | 10290000 | 5 | 86 | 81.1 | 19.5 | 33.2 | 25.5 |
| 3 | R-2 (N) DIFFUSER WITH S.S. INSERT | 10320000 | 5 | 86 | 81.1 | 19.5 | 33.2 | 26 |
| 4 | R-3 (N) DIFFUSER WITH S.S. INSERT | 10340000 | 5 | 86 | 81.1 | 19.5 | 33.2 | 29.5 |
| 5 | R-3 (N) DIFFUSER (6) WITH S.S. INSERT | 11490000 | 6 | 86 | 81.1 | 19.5 | 33.2 | 29.5 |
| 6 | R-5 (N) DIFFUSER WITH S.S. INSERT | 10370000 | 5 | 86 | 81.1 | 19.5 | 44.5 | 36.3 |
| 7 | R-7 (N) DIFFUSER WITH S.S. INSERT | 10370000 | 5 | 86 | 81.1 | 19.5 | 44.5 | 36.3 |
| 8 | R-TYPE 9B DIFFUSER | 11320000 | 6 | 85.5 | 80.8 | 19.5 | 33.2 | 25 |
| 9 | R-TYPE 19B DIFFUSER | 11340000 | 6 | 85.5 | 80.8 | 19.5 | 44.5 | 34 |
| 10 | R-2 (N) DIFFUSER WITH S.S. INSERT | 10320000 M | 5 | 84.3 | 81.1 | 19.5 | 33.2 | 26 |
| 11 | K-12 BOWL | 11730000 | 67 | 86 | 82.1 | 19.5 | 48.5 | 52 |
