Mixflow - Impeller

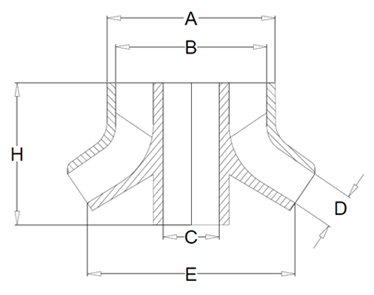

| NO | PRODUCT NAME | ITEM | VANE | VANE | NECK | NECK | BORE | HEIGHT |
|---|---|---|---|---|---|---|---|---|
| NO | NO | GAP (mm) | OD (Ø) | OD (Ø) | OD (Ø) | (mm) | ||
| 1 | M-62 IMPELLER | 11130000 | 6 | 14.5 | 69.8 | 59.6 | 20 H7 + KEY WAY | 28 |
| 2 | K-18 A IMPELLER | 11250000 | 7 | 11.5 | 60.6 | 55 | 14 WITH KEY | 72 |
| 3 | K-18 C IMPELLER | 11310000 | 7 | 13 | 60.6 | 55 | 14 WITH KEY | 72 |
| 4 | K-18 IMPELLER | 11600000 | 7 | 12 | 60.6 | 55 | 14 WITH KEY | 72 |
