Accessories - Middle

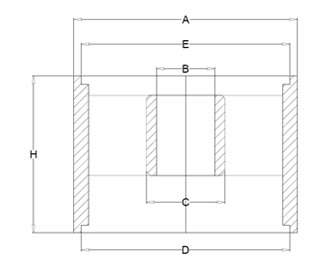

| NO | PRODUCT NAME | ITEM | OD | BORE | ASS. | HEIGHT | PLATE |
|---|---|---|---|---|---|---|---|
| NO | (Ø) | ID (Ø) | ID (Ø) | (mm) | ID (Ø) | ||
| NO | A | B | E/D | H | |||
| 1 | K-4 DOL | 11380000 | 81 | 26.5 + KEY WAY | 74.6 | 37.3 | |
| 2 | R 1/2/3 DOL | DL 10620000 | 86 | 28 | 81.1 | 35 | |
| 3 | R 5/7 DOL | DL 10630000 | 86 | 28 | 81.1 | 35 | |
| 4 | R 1/2/3 MIDDLE WITH PLATE | M 10620100 | 86 | 28 | 81.1 | 35 | 33.2 |
| 5 | R 5/7 MIDDLE WITH PLATE | M 10630100 | 86 | 28 | 81.1 | 35 | 44.5 |
